Scalable Atlas

Automatic camera-based projector mapping software for complex geometries. Atlas is designed to achieve high-quality, repeatable results that can be accessed on demand with a “one-click” recalibration.

Bring any project to life

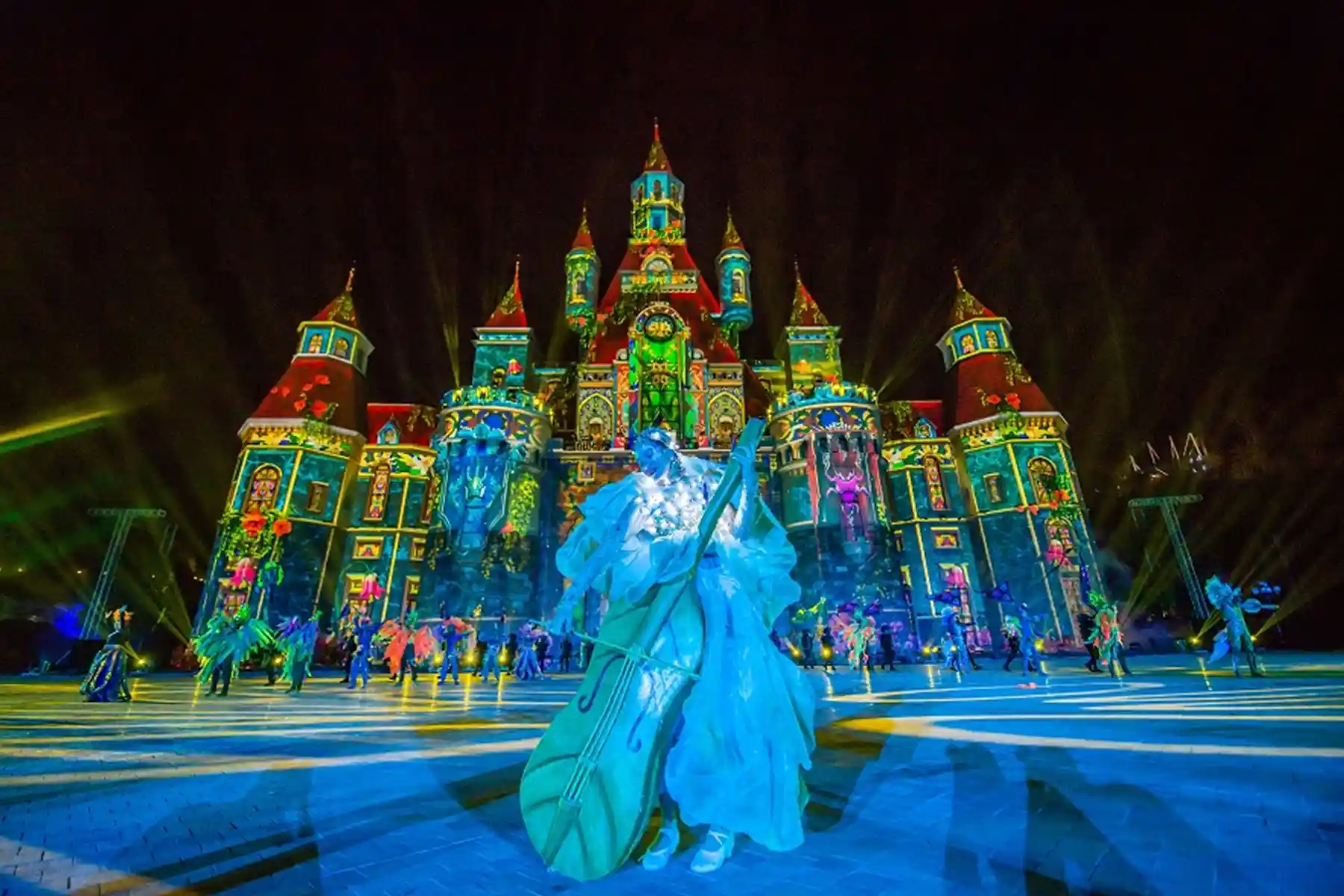

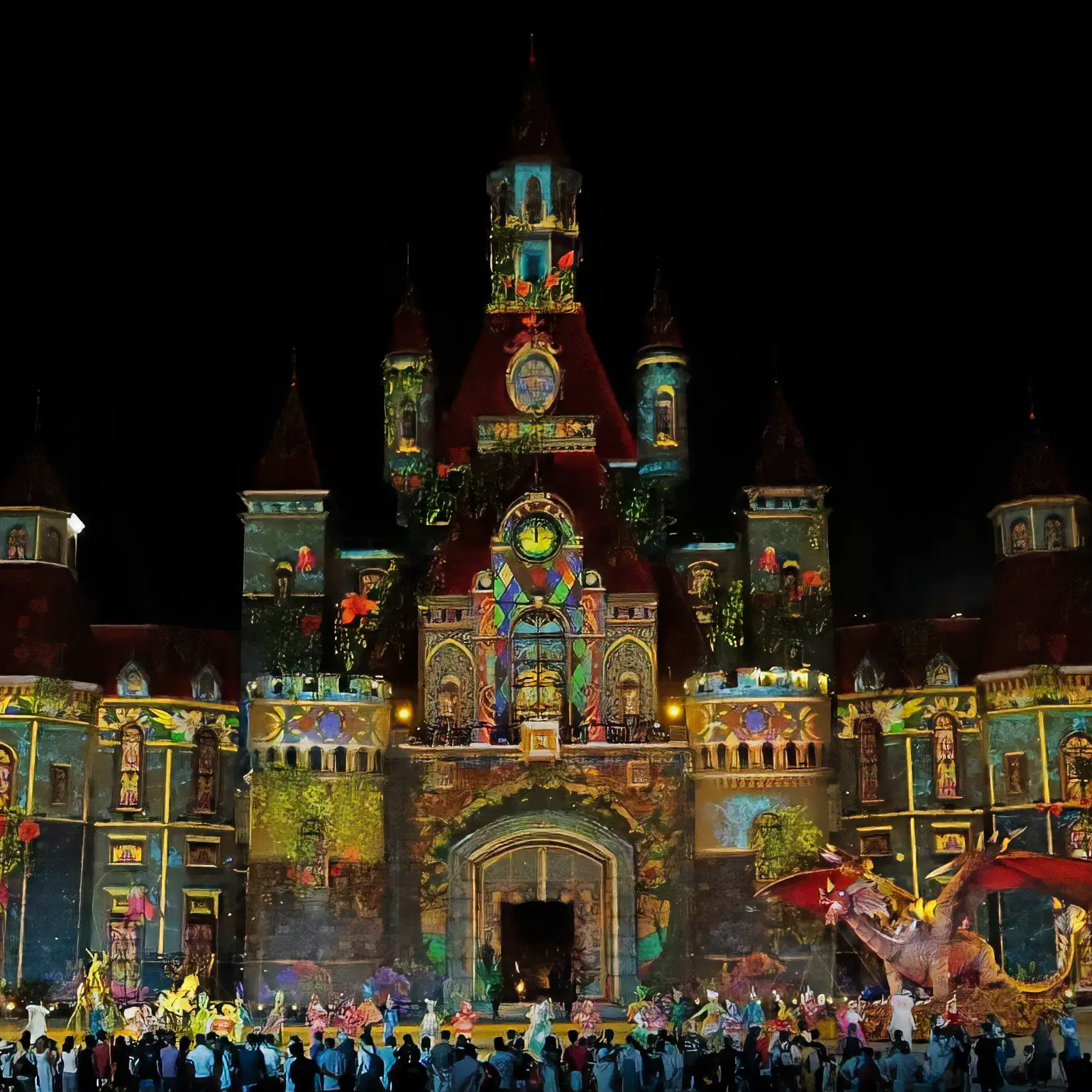

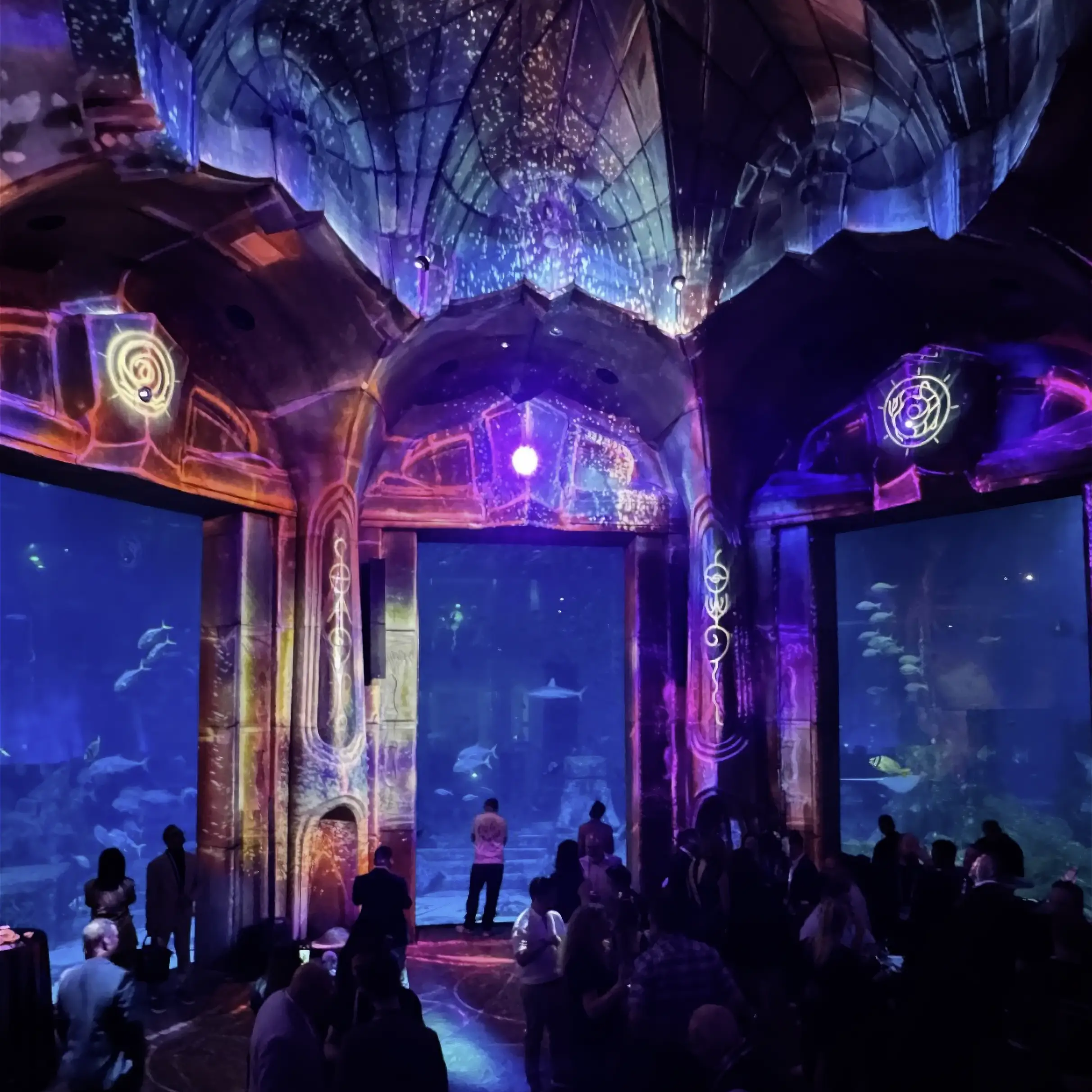

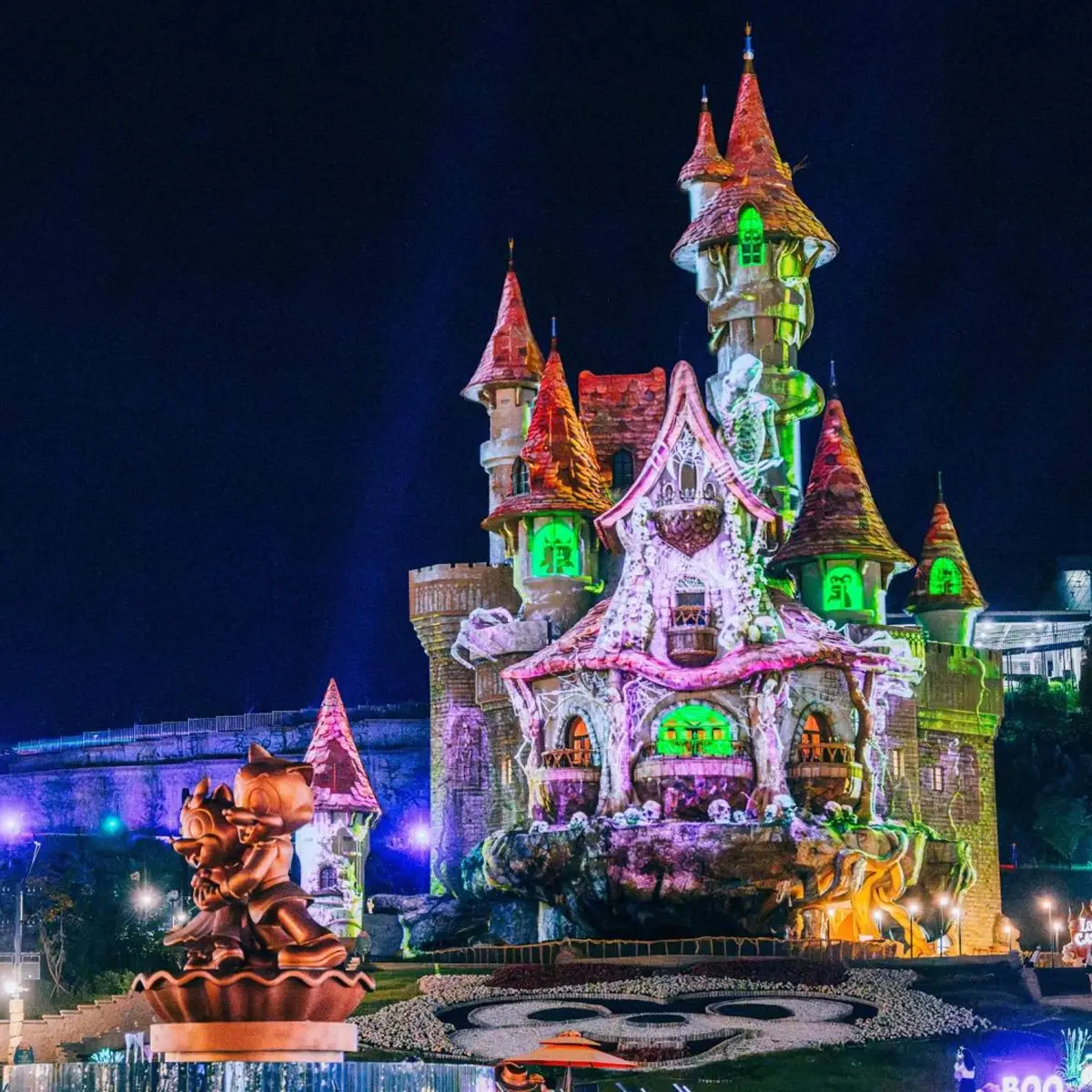

Scalable Atlas is a professional software application designed to automatically align the images of multiple projectors together on any complex object or surface. From life-size statues to room-sized experiential environments to highly detailed theme park castles and live events, Atlas simplifies the most difficult of projection mapping scenarios by leveraging Scalable’s industry-leading camera-based calibration process to eliminate the time consuming manual alignment procedures required by many other tools.

 Intuitive & easy to use

Atlas has an easy-to-use GUI for quick and intuitive setup with an interactive real-time preview of the projector image alignment.

Atlas is integrated with MPCDI -shader lamps profile only- as well as Scalable’s SDK allowing customers to easily plug-in to any Media Server or playback system for a seamless addition to their workflow. Bring your vision to life by adding Atlas specialty mapping software to your existing toolset.

Automatic Warp & Blend

Use a camera to quickly and easily edge-blend multiple projectors and warp the content to any screen geometry.

Easy to Use

Simple intuitive interface, you don’t need to be a professional projectionist to get professional results.

Any Screen Geometry

Map your projectors onto any complex screen geometries via 3D file import into Scalable Atlas.

Minimum Requirements for Host Machine

We recommend running Scalable Atlas from a separate calibration laptop or a small form-factor PC. The Host machine will need connections to your cameras, and network connections to your IGs and/or warping boxes. It is possible for Atlas to run from a PC in your rack, or locally on the image generator, but it is strongly recommended that you have access to the PC (either physically or through VNC, etc) with the ability to directly view the screen for setup purposes.

  • Windows 7 64-bit Home Premium or better (Home Basic not supported), Windows 8.1 64-bit, or Windows 10 64-bit (for Scalable 3.5 or newer)
  • 6GB of RAM or more.
  • Intel Core i5 Processor or better.
  • OpenGL 3.0 compatible graphics card or better
  • Gigabit network adapter
  • 200GB or larger SSD with at least 50GB space available.
  • Laptop with backlit keyboard strongly recommended.

Patents

US Patent 8,994,757B2, Japan Patent 6,046,668, Korea Patent 10-1533853, US Patent 9,497,447B2, US Patent 9,860,494B2
